XPON ONT ONU 1GE 3FE 1POTS(VOIP) WiFi5 (Dual Mode GPON/EPON) Modem
SKU: 5487FB8/11-1
Inclusive of all taxes
Razorpay Verified Secure Payment
Payment Methods
Trusted by Businesses Across India
Genuine Products
Sourced from authorized channels
Quality Checked
On every order, every time
PAN India Delivery
Shipped nationwide
Warranty
Where applicable, per manufacturer
Highlights
- 1 * G/EPON interface: SC/UPC/APC interface, ITU-T G.984,ITU-T IEEE802.3ah
- 4 * Ethernet interface: 10/ 100/ 1000 Mbps, RJ – 45, IEEE802.3-2005 standard
- 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1 * USB interface: standard USB 3.0 interface
- Dual-band WIFI5(2.4G 100 Mbps 5G 400 Mbps)
Specifications
| SKU | 5487FB8/11-1 |
|---|
Description

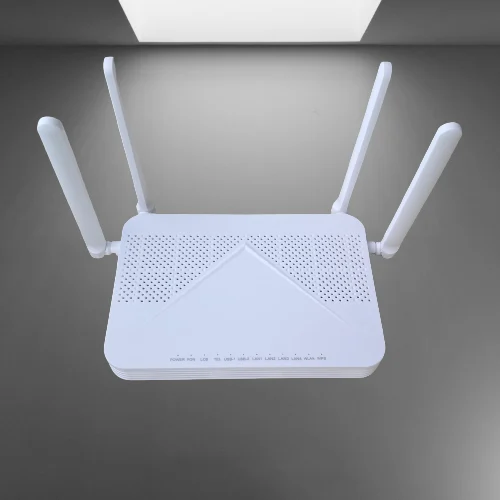

The XPON(GPON and EPON dual mode adaptive) optical terminal access device that is highly integrated with dual-frequency Wi-Fi5. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through G/EPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the X1412 are G/EPON ports. The downstream user ports include four GE electrical ports, one USB port,one VOIP port and WiFi5 WLAN ports.
| Interface Parameters | |
| G/EPON Port | GPON:Class B + |
| EPON:PX20+ | |
| GPON:Upstream1.25Gbps; Downstream:2.48Gbps | |
| EPON:Upstream1.25Gbps; Downstream:1.25Gbps | |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal |
| VLAN transparent and mark | |
| MAC address learning | |
| 10/100/1000Mbps Autonegotiation | |
| VoIP Port | Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. |
| G711A/G711U/G729/G722 | |
| SDP protocol (RFC 2327 and RFC 4566) | |
| T.30/T.38/G.711 faxmode | |
| Hardware Parameters | |
| LED | POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB |
| Ports | 4*RJ45(GE) |
| 1*RJ11(POTS) | |
| 1*Reset+1*Power +1*LED button+1*WiFi button+1*WPS | |
| 1*SC/UPC (or SC/APC) | |
| 1*POTS | |
| 1*DC | |
| 1*USB3.0 | |
| Size | 190mm*135mm*33mm(L*W*H) |
| consumption | ≤8W |
| WiFi5 | |
| WiFi protocol | 2.4GHz supports 802.11b/g/n; 5GHz supports 802.11a/n/ac |
| Transmit power | 2.4G 100mW,5G/200mW, |
| Antenna gain | 5dBi |
| Antenna | dual-antenna MIMO (2.4G&5G) |
| WLAN penetrate | one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete) |
| WLAN access capability | 64 client |
| channel | 2.4GHz（channel 1-13）; 5GHZ（channel 36-161 ） |
| WPS | WLAN terminal devices with WPS Push Button function establish connection within 2 minutes |
| WLAN security function | WPA-PSK、WPA2-PSK、WPA3、 WPA-PSK/WPA2-PSK AES、AES+TKIP |
| Air Speed | 2.4G 100 Mbps, 5G 400 Mbps |
| Environment | |
| Operating Temperature | 0℃~45℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 5%～95%（non-condensing） |
| Power Supply | 12V/1.5A |
| Product Function | |
| GPON | ITU-T G.984.1-4/IEEE802.3ah |
| 15 TCONTs /256GEM ports | |
| 8 Egress queues per TCONT at least | |
| VLAN/ priority/VEIP gem mapping mode | |
| SN/LOID/SN+ Password authentication | |
| Performance monitoring: eth/Gem port | |
| Dying gasp | |
| Layer 3 Features | PPPoE/Static IP/DHCP |
| NAT/NAPT | |
| Port forwarding | |
| ALG, UPnP | |
| DDNS | |
| IPv6/IPv4 dual stack, and DS-Lite | |
| Static/Default routes | |
| Multiple services on one WAN port | |
| RIPv2 with passive mode | |
| Layer 2 Features | MAC learning (SVL)/aging |
| Support max frame length to1518 bytes | |
| VLAN tagging for untagged packets | |
| Support VLAN 1-4094 | |
| VLAN transparent/translation | |
| QoS | Support 8 Queues with Strict Priority |
| Ethernet port rate limitation | |
| 802.1ppriority | |
| SP/WRR | |
| Service flow classification | |
| Multicast | IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) |
| IGMP snooping and IGMP Proxy | |
| MLD v1/v2 | |
| Management | OMCI/Web UI/TR069 |
