Description

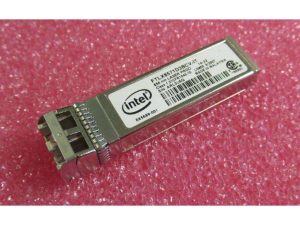

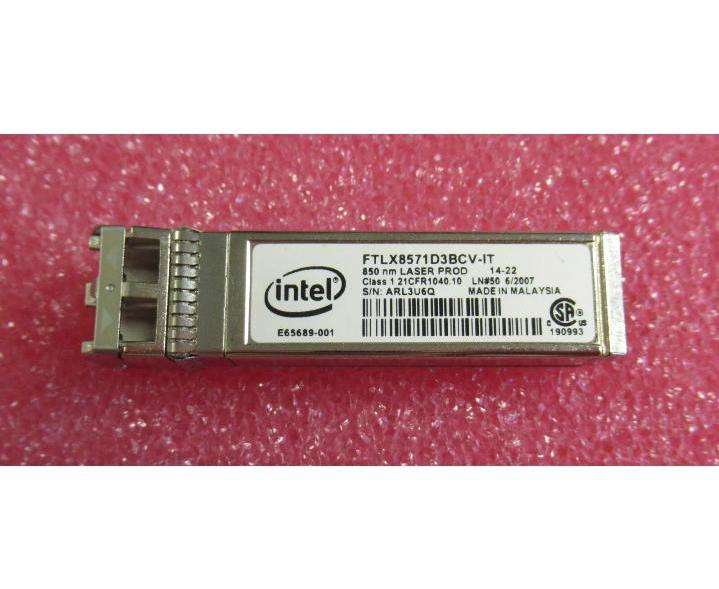

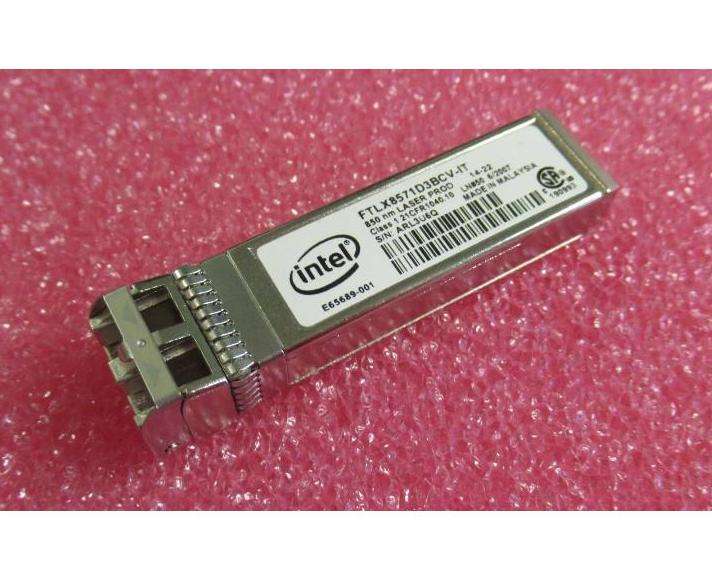

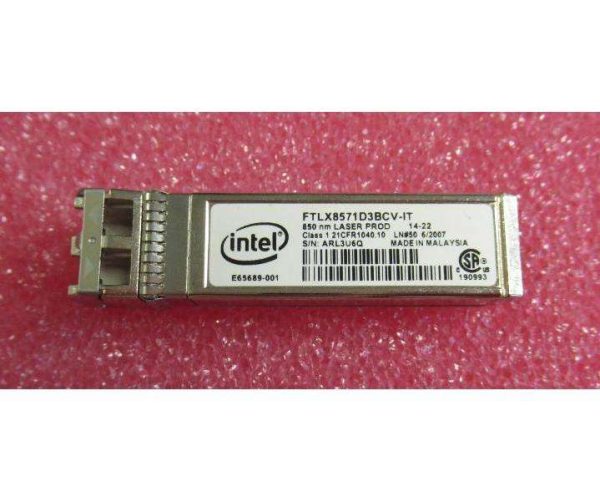

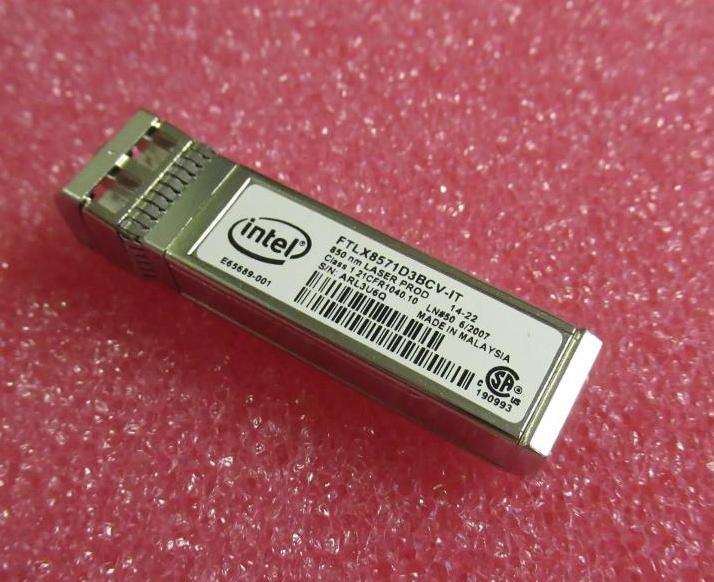

The Intel FTLX8571D3BCV-IT is a compact SFP+ optical module that supports both 1 Gigabit (1000BASE-SX) and 10 Gigabit Ethernet (10GBASE-SR) standards. Designed for Intel server adapters, it offers reliable and energy-efficient connectivity over multimode fiber.
This 10G transceiver ensures seamless integration with Intel X520, X540, and X710 network adapters. With hot-pluggable design, 850nm wavelength, and LC duplex connector, it delivers consistent high-speed performance up to 300 meters on OM3 fiber.
Key Features:
Dual-rate support: 1Gbps and 10Gbps
Wavelength: 850nm

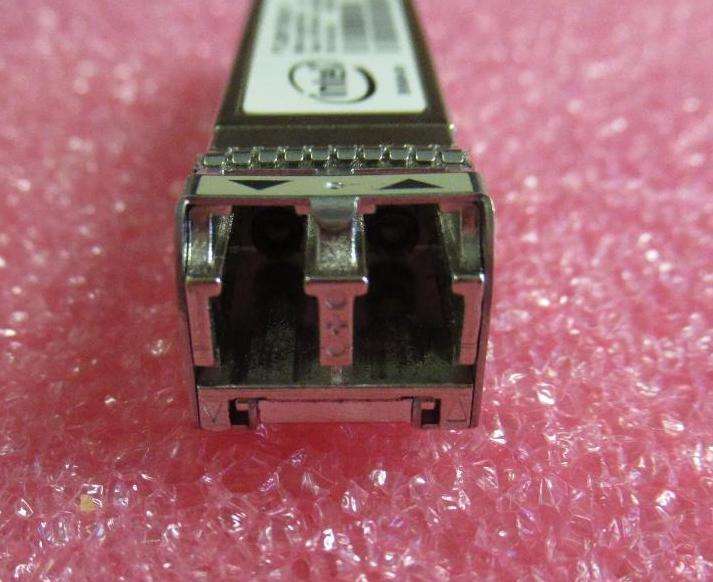

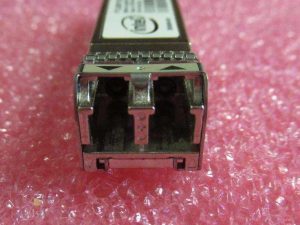

LC duplex connector
Multimode fiber support (OM2/OM3)
Distance: Up to 300m (OM3, 10GBASE-SR)
Operating temperature: –40°C to +85°C
Hot-swappable, energy-efficient design
Why Choose This Module?
Flexible for both Gigabit and 10-Gigabit networks
Intel-grade quality and compatibility
Low power consumption for data centers
Perfect for enterprise servers and high-speed storage
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Intel FTLX8571D3BCV-IT |
| Data Rate | 1Gbps & 10Gbps |
| Standard Support | 1000BASE-SX, 10GBASE-SR |
| Wavelength | 850 nm |
| Connector | LC duplex |
| Cable Type | Multimode Fiber (MMF) |
| Max Distance | 300m (OM3, 10G), 80m (OM2, 10G) |
| Temperature Range | –40°C to +85°C |
| Compatibility | Intel X520, X540, X710, and other Intel adapters |
