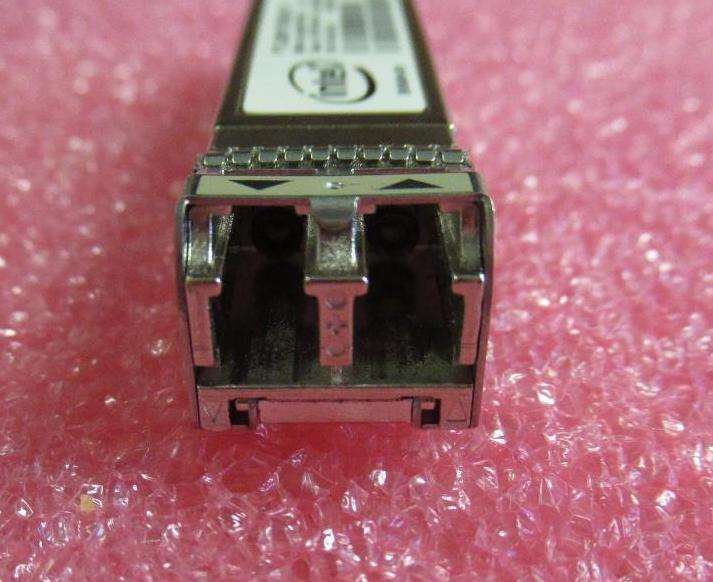

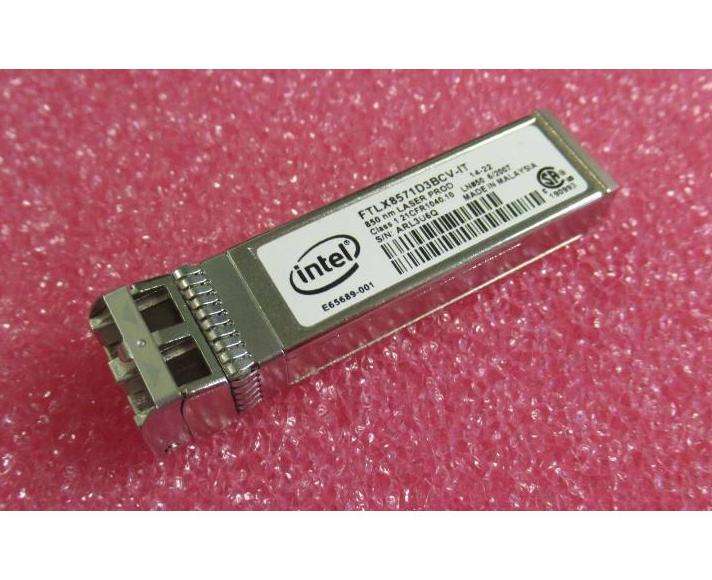

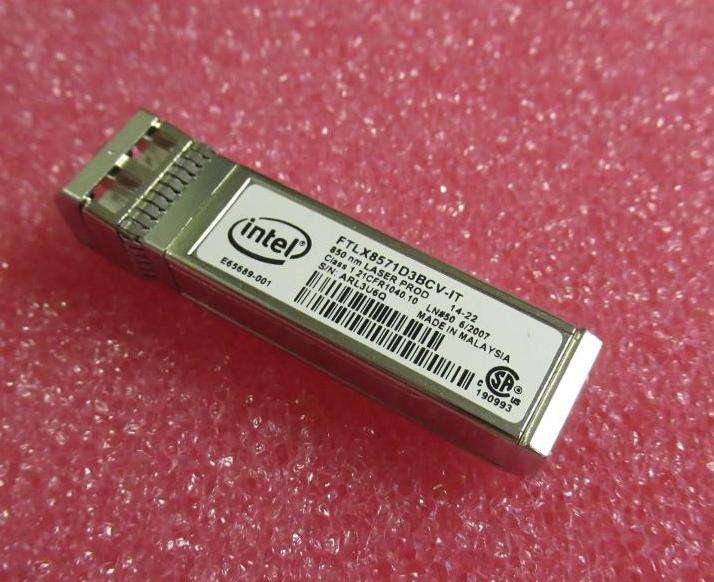

Intel FTLX8571D3BCV-IT SFP Transceiver Module 1000BASE-SX, 10GBASE-SR
SKU: 5484789
You save ₹1,000
Inclusive of all taxes
Razorpay Verified Secure Payment
Payment Methods
Trusted by Businesses Across India
Genuine Products
Sourced from authorized channels
Quality Checked
On every order, every time
PAN India Delivery
Shipped nationwide
Warranty
Where applicable, per manufacturer
Highlights
The Intel FTLX8571D3BCV-IT is a dual-rate SFP+ transceiver module supporting 1000BASE-SX and 10GBASE-SR. It delivers reliable fiber connectivity up to 300m over multimode fiber, with low power consumption and compatibility with Intel X520, X540, and X710 network adapters.
Specifications
| SKU | 5484789 |
|---|
Description
The Intel FTLX8571D3BCV-IT is a compact SFP+ optical module that supports both 1 Gigabit (1000BASE-SX) and 10 Gigabit Ethernet (10GBASE-SR) standards. Designed for Intel server adapters, it offers reliable and energy-efficient connectivity over multimode fiber.
This 10G transceiver ensures seamless integration with Intel X520, X540, and X710 network adapters. With hot-pluggable design, 850nm wavelength, and LC duplex connector, it delivers consistent high-speed performance up to 300 meters on OM3 fiber.
Key Features:
-
Dual-rate support: 1Gbps and 10Gbps
-
Wavelength: 850nm
-
LC duplex connector
-
Multimode fiber support (OM2/OM3)
-
Distance: Up to 300m (OM3, 10GBASE-SR)
-
Operating temperature: –40°C to +85°C
-
Hot-swappable, energy-efficient design
Why Choose This Module?
-
Flexible for both Gigabit and 10-Gigabit networks
-
Intel-grade quality and compatibility
-
Low power consumption for data centers
-
Perfect for enterprise servers and high-speed storage
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Intel FTLX8571D3BCV-IT |
| Data Rate | 1Gbps & 10Gbps |
| Standard Support | 1000BASE-SX, 10GBASE-SR |
| Wavelength | 850 nm |
| Connector | LC duplex |
| Cable Type | Multimode Fiber (MMF) |
| Max Distance | 300m (OM3, 10G), 80m (OM2, 10G) |
| Temperature Range | –40°C to +85°C |
| Compatibility | Intel X520, X540, X710, and other Intel adapters |
