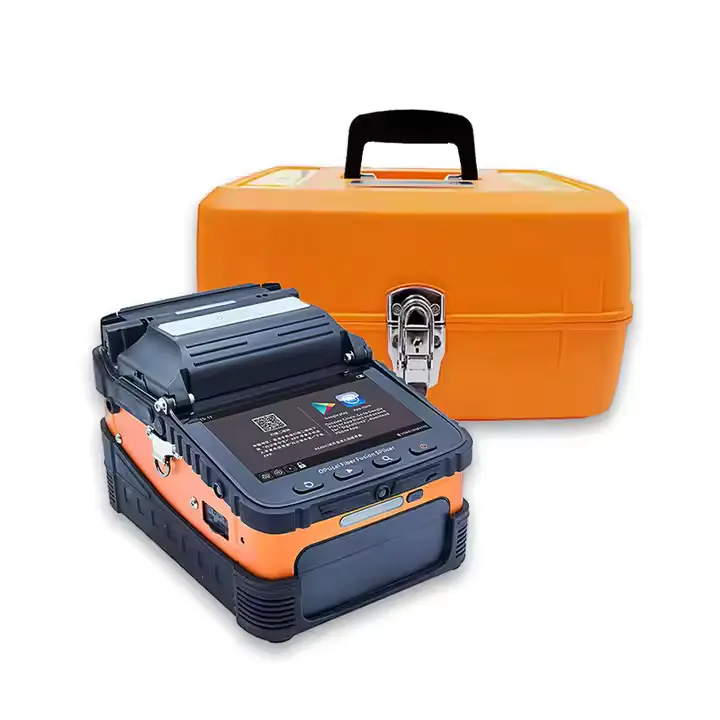

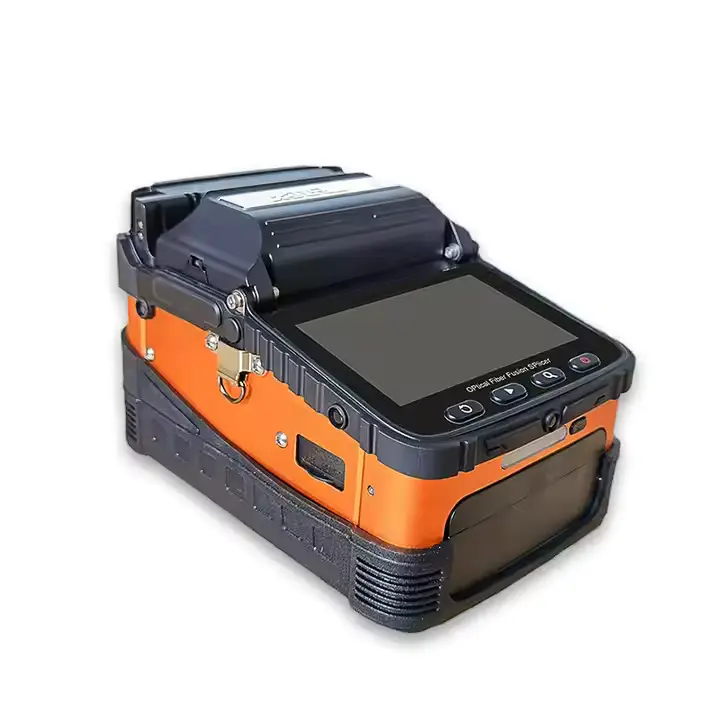

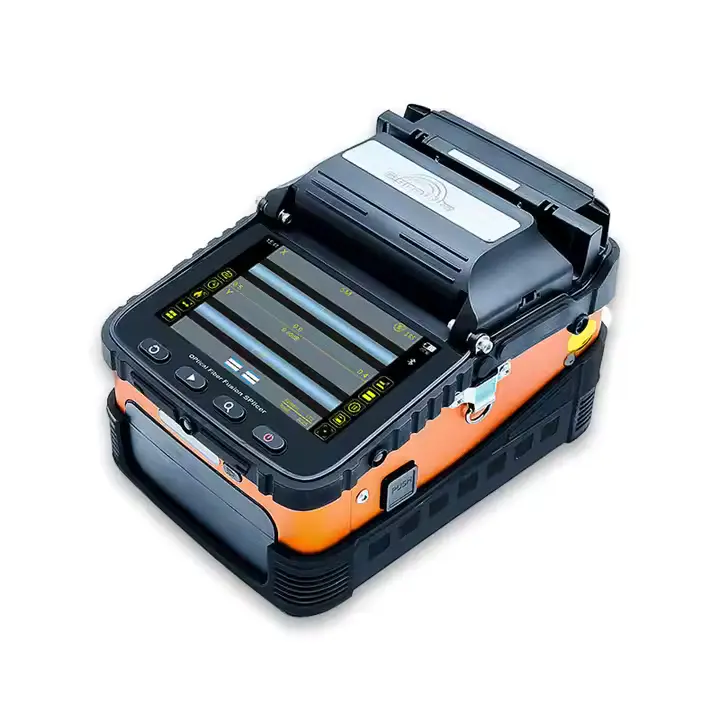

FTTH Optical Splicing Machine – Signal Fire AI-6C Automatic Intelligent 6-Motor Fiber Fusion Splicer

Signal Fire AI-6C FTTH Optical Splicing Machine – Precision, Speed & Durability

The Signal Fire AI-6C is a next-generation FTTH Optical Splicing Machine built for high-precision and high-speed fiber optic splicing. Featuring 6-motor core alignment technology and intelligent arc calibration, it ensures minimal splice loss and long-lasting connections for all professional fiber applications.

Key Features:

• Advanced 6-motor core alignment for precise fiber positioning
• Automatic arc calibration for consistent splicing quality
• Splicing time: 6 seconds | Heating time: 15 seconds
• Shockproof, dustproof, and weather-resistant design
• Supports SM, MM, DS, and NZDS fibers
• 5-inch high-resolution LCD display with clear UI
• Powerful battery – up to 240 splicing cycles per charge

Technical Specifications:

• Alignment Method: Core Alignment (6 Motors)
• Average Splice Loss: SM – 0.02dB, MM – 0.01dB
• Display: 5-inch LCD, 800×480 resolution
• Battery: Li-ion, up to 240 cycles per charge
• Operating Temperature: -10°C to +50°C
• Weight: 2.5 kg

Package Includes:

• Signal Fire AI-6C FTTH Optical Splicing Machine
• High-precision Fiber Cleaver
• Rechargeable Battery Pack
• AC Adapter & Charger
• Spare Electrodes
• Protective Carrying Case
• User Manual

Applications: FTTH projects, telecom backbone networks, CCTV fiber systems, and enterprise LAN/WAN fiber deployments.

Choose the Signal Fire AI-6C FTTH Optical Splicing Machine for unmatched speed, precision, and durability in professional fiber optic splicing.
