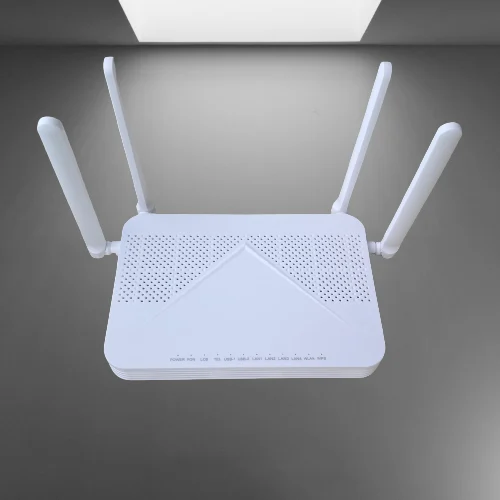

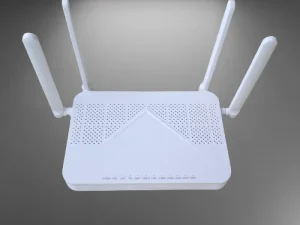

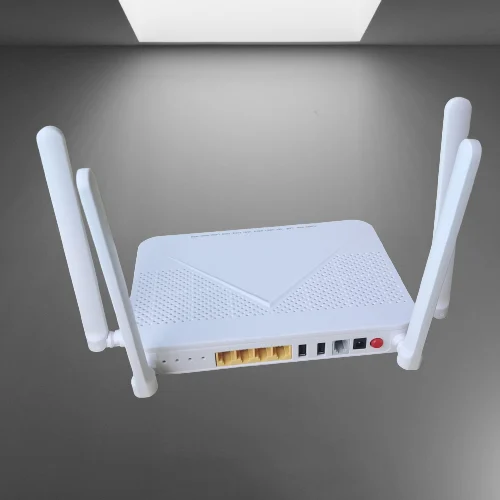

XPON ONT ONU 1GE 3FE 1POTS(VOIP) WiFi5 (Dual Mode GPON/EPON) Modem
- 1 * G/EPON interface: SC/UPC/APC interface, ITU-T G.984,ITU-T IEEE802.3ah
- 4 * Ethernet interface: 10/ 100/ 1000 Mbps, RJ – 45, IEEE802.3-2005 standard
- 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1 * USB interface: standard USB 3.0 interface
- Dual-band WIFI5(2.4G 100 Mbps 5G 400 Mbps)
24 people are viewing this product right now
₹1,800.00
Shipping calculated at checkout.
🔥 Buy More Save More!
Buy 3 items get 5% OFF
on each productBuy 6 items get 10% OFF
on each productBuy 10 items get 15% OFF
on each product
Estimated delivery:5 days
Guarantee Safe and Secure Payment Checkout
The XPON(GPON and EPON dual mode adaptive) optical terminal access device that is highly integrated with dual-frequency Wi-Fi5. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through G/EPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the X1412 are G/EPON ports. The downstream user ports include four GE electrical ports, one USB port,one VOIP port and WiFi5 WLAN ports.
| Interface Parameters | |
| G/EPON Port | GPON:Class B + |
| EPON:PX20+ | |
| GPON:Upstream1.25Gbps; Downstream:2.48Gbps | |
| EPON:Upstream1.25Gbps; Downstream:1.25Gbps | |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal |
| VLAN transparent and mark | |
| MAC address learning | |
| 10/100/1000Mbps Autonegotiation | |
| VoIP Port | Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. |
| G711A/G711U/G729/G722 | |
| SDP protocol (RFC 2327 and RFC 4566) | |
| T.30/T.38/G.711 faxmode | |
| Hardware Parameters | |
| LED | POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB |
| Ports | 4*RJ45(GE) |
| 1*RJ11(POTS) | |
| 1*Reset+1*Power +1*LED button+1*WiFi button+1*WPS | |
| 1*SC/UPC (or SC/APC) | |
| 1*POTS | |
| 1*DC | |
| 1*USB3.0 | |
| Size | 190mm*135mm*33mm(L*W*H) |
| consumption | ≤8W |
| WiFi5 | |
| WiFi protocol | 2.4GHz supports 802.11b/g/n; 5GHz supports 802.11a/n/ac |
| Transmit power | 2.4G 100mW,5G/200mW, |
| Antenna gain | 5dBi |
| Antenna | dual-antenna MIMO (2.4G&5G) |
| WLAN penetrate | one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete) |
| WLAN access capability | 64 client |
| channel | 2.4GHz（channel 1-13）; 5GHZ（channel 36-161 ） |
| WPS | WLAN terminal devices with WPS Push Button function establish connection within 2 minutes |
| WLAN security function | WPA-PSK、WPA2-PSK、WPA3、 WPA-PSK/WPA2-PSK AES、AES+TKIP |
| Air Speed | 2.4G 100 Mbps, 5G 400 Mbps |
| Environment | |
| Operating Temperature | 0℃~45℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 5%～95%（non-condensing） |
| Power Supply | 12V/1.5A |
| Product Function | |
| GPON | ITU-T G.984.1-4/IEEE802.3ah |
| 15 TCONTs /256GEM ports | |
| 8 Egress queues per TCONT at least | |
| VLAN/ priority/VEIP gem mapping mode | |
| SN/LOID/SN+ Password authentication | |
| Performance monitoring: eth/Gem port | |
| Dying gasp | |
| Layer 3 Features | PPPoE/Static IP/DHCP |
| NAT/NAPT | |
| Port forwarding | |
| ALG, UPnP | |
| DDNS | |
| IPv6/IPv4 dual stack, and DS-Lite | |
| Static/Default routes | |
| Multiple services on one WAN port | |
| RIPv2 with passive mode | |
| Layer 2 Features | MAC learning (SVL)/aging |
| Support max frame length to1518 bytes | |
| VLAN tagging for untagged packets | |
| Support VLAN 1-4094 | |
| VLAN transparent/translation | |
| QoS | Support 8 Queues with Strict Priority |
| Ethernet port rate limitation | |
| 802.1ppriority | |
| SP/WRR | |
| Service flow classification | |
| Multicast | IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) |
| IGMP snooping and IGMP Proxy | |
| MLD v1/v2 | |
| Management | OMCI/Web UI/TR069 |
Related products
Sale!

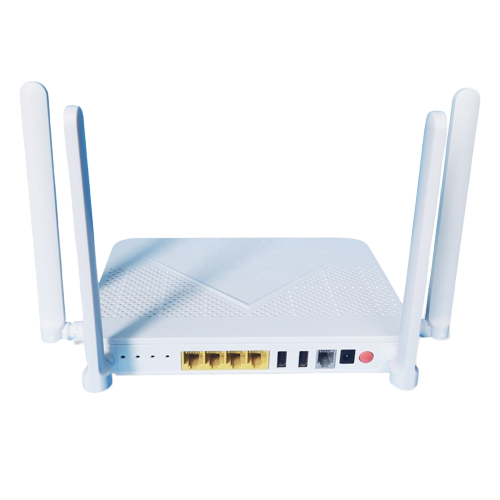

Dualband WIFI XPON ONU 4GE +1Voice +1USB + 2.4G/5.8G Wi-Fi AC ONU GPON ONT XPON Network Terminal Devices ZTE Chipset
