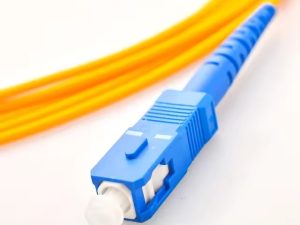

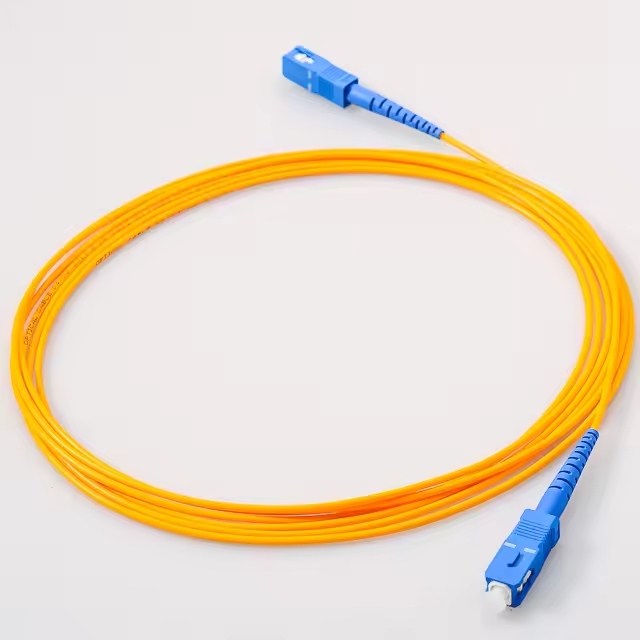

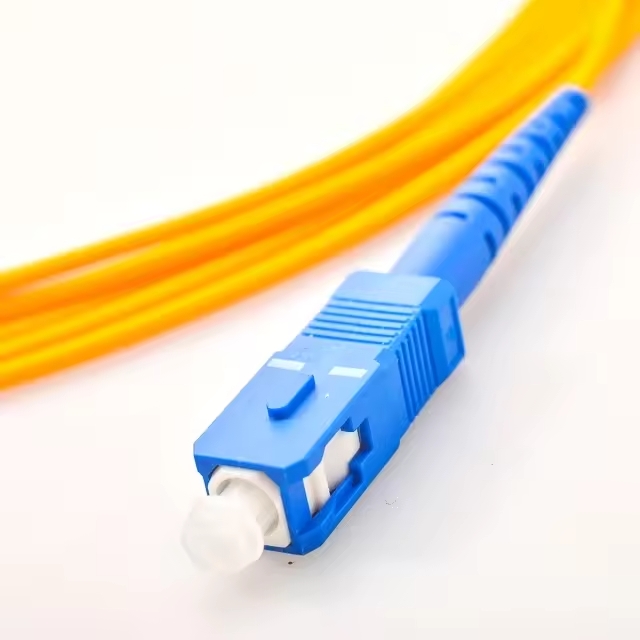

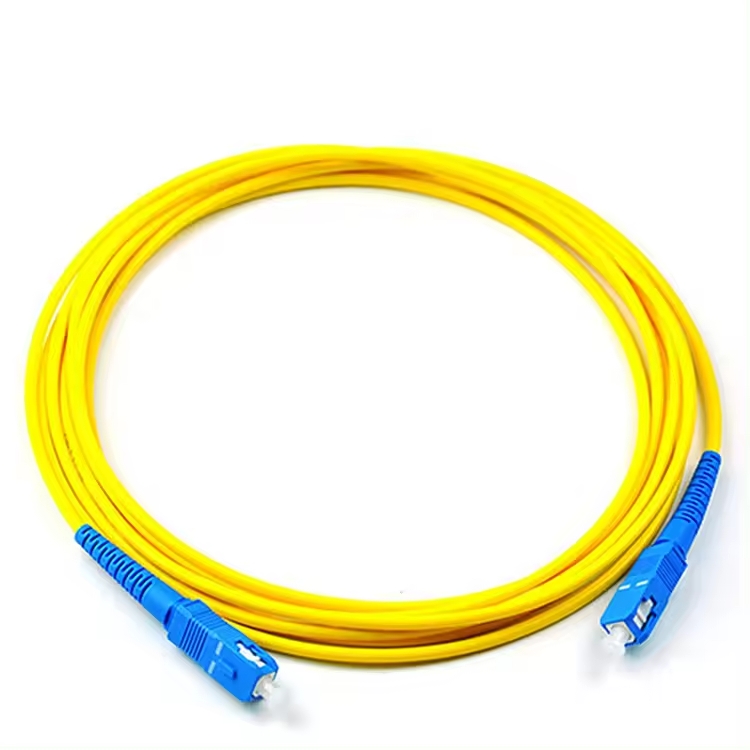

SC to SC Single Mode Fiber Optic Patch Cable – 5Mtr

Enhance your network performance with our SC to SC Single Mode Fiber Optic Patch Cable (5Mtr), engineered for reliable long-distance connectivity. This premium fiber patch cord is built with OS2 9/125µm single mode fiber and precision SC connectors, ensuring low insertion loss, high return loss, and excellent endface geometry for stable data transmission.

Key Features:

• Connector Type: SC to SC (UPC polish)

• Fiber Type: Single Mode OS2 9/125µm

• Length: 5 meters (custom lengths available)

• Cable Diameter: 3.0mm LSZH jacket for durability and fire safety

• Performance:

  • Insertion Loss: <0.35 dB/km at 1310 nm

  • Insertion Loss: <0.22 dB/km at 1610 nm

  • High return loss and repeatability

• Operating Temperature: -20°C to +70°C

Benefits:

• Reliable Data Transmission – Stable signal with minimal loss over long distances

• Durable LSZH Jacket – Low smoke, halogen-free, flame-resistant for indoor safety

• Standards Compliant – CE, RoHS certified; ISO/IEC61754, EN 50399 & EN 50575 compliant

• Plug-and-Play Ready – SC to SC connectors ensure easy installation and compatibility

• Versatile Applications – Telecom, FTTH, data centers, LAN/WAN, CATV, and enterprise networks

Applications:

• FTTH (Fiber to the Home) broadband

• Data centers and server rooms

• Telecom and ISP infrastructure

• CATV networks

• Enterprise LAN/WAN connections

Why Choose This Cable?

The SC to SC Single Mode Fiber Optic Patch Cable – 5Mtr is the perfect choice for professionals who demand high-speed, low-loss fiber connectivity. With its LSZH jacket, robust construction, and certified compliance, it provides a reliable solution for modern networking environments.

Technical Details (Extended):

The SC to SC OS2 Single Mode Fiber Optic Patch Cable is designed for high-performance fiber optic connections. It features low insertion loss, high return loss, and excellent endface geometry, ensuring reliable data transmission over long distances.

• Constructed with OS2 9/125µm single mode fiber (SMF)

• SC male connectors on both ends

• 3.0mm LSZH jacket – durable, flexible, and low smoke

• Attenuation rates:

  • <0.35 dB/km at 1310 nm

  • <0.22 dB/km at 1610 nm

• Operating temperature: -20°C to +70°C

• Fully CE/RoHS certified and compliant with ISO/IEC61754, EN 50399, EN 50575

Additional Features:

• Low insertion loss & high return loss

• Good repeatability and exchangeability

• High temperature stability

• Excellent endface geometry

• Supports both 1310nm and 1610nm wavelengths

• Flexible and durable for long-term use
