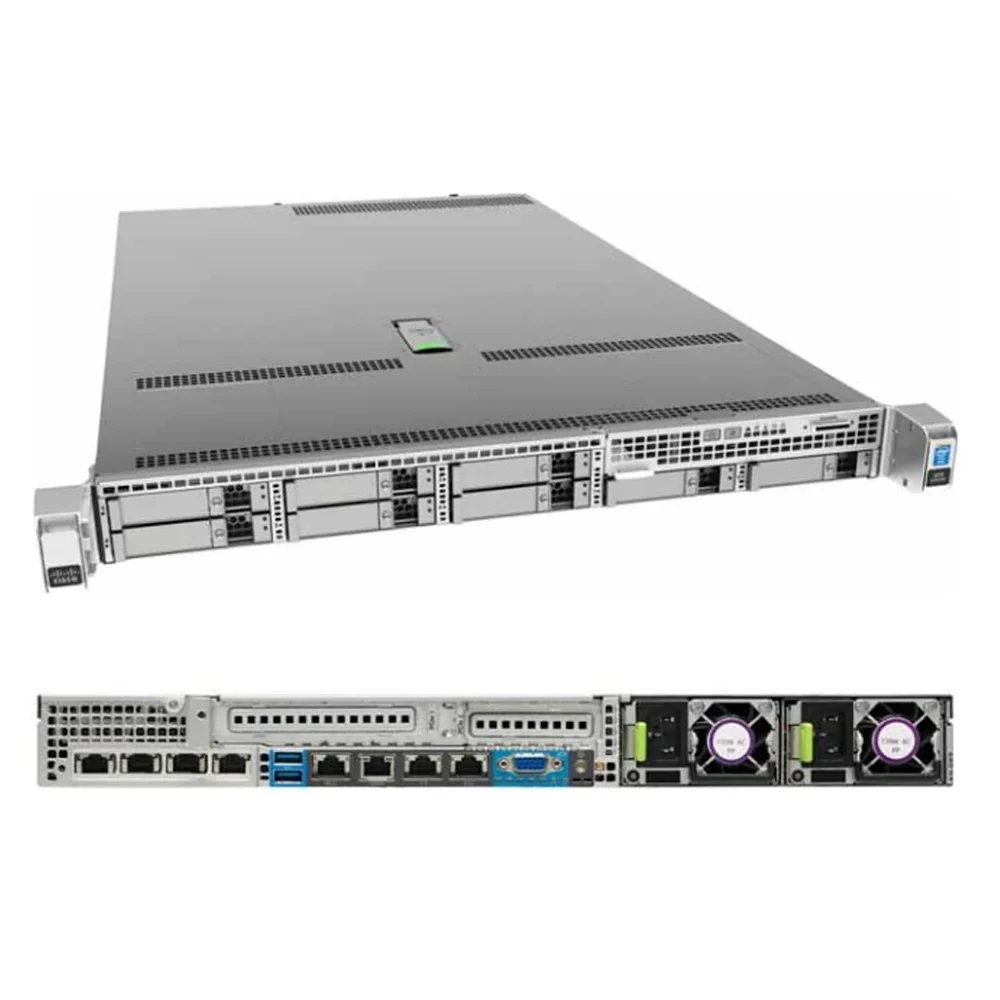

Cisco UCS C220 M4 SFF Rack Server (Suitable for MikroTik, Virtualization & Data Center Applications)

The Cisco UCS C220 M4 is a high-performance 1U rack server optimized for compute-intensive workloads such as virtualization, networking, and routing. With its balanced mix of compute power, memory capacity, and I/O flexibility, it’s one of the most versatile servers in Cisco’s UCS lineup.
It’s particularly well-suited for MikroTik CHR, RouterOS, or Proxmox-based network gateways.

🔧 Technical Specifications:
Component Details
Processor Up to 2 × Intel® Xeon® E5-2600 v3/v4 CPUs (up to 22 cores each)
Memory Up to 1.5 TB DDR4 (24 DIMM slots)
Drive Bays Up to 8 × 2.5” SFF (SAS/SATA/SSD) hot-swappable drives
RAID Controller Cisco 12G SAS Modular RAID Controller (RAID 0/1/5/10/50)
Expansion Slots 2 × PCIe 3.0 slots
Networking 2 × 1GbE LOM (onboard) + optional 10GbE / 40GbE NICs
Power Supply Dual redundant 650W / 770W hot-swappable PSU
Form Factor 1U Rackmount
Management Cisco Integrated Management Controller (CIMC)
🧠 Ideal for MikroTik & Network Deployments:

MikroTik RouterOS v7 / Cloud Hosted Router (CHR)

PPPoE, BGP, OSPF, VPN, Firewall, and Load Balancing

ISP core routers or network aggregation points

Proxmox / VMware / Hyper-V / KVM virtualized MikroTik environments

High-throughput 10GbE/40GbE network infrastructure

⚙️ Recommended MikroTik Setup Example:
Component Suggested Configuration
CPU 2 × Intel Xeon E5-2650v4 (12 cores each)
Memory 32GB–128GB DDR4 ECC
Storage 120GB or 240GB SSD for RouterOS / CHR
Network Card Intel X520-DA2 or X710 10GbE SFP+
Power Dual 650W redundant PSU

✅ Fully compatible with MikroTik CHR licensing levels (P1–P10).
✅ Tested on RouterOS 7.x, Proxmox VE, and ESXi 8 platforms.

💼 Use Cases:

ISP Router or Internet Gateway

Data Center Edge Firewall

Enterprise VPN Concentrator

Network Load Balancer

Virtualization Host (VMware, Proxmox, or Hyper-V)

🧩 Why Choose Cisco UCS C220 M4:

Proven Cisco enterprise reliability

Compact 1U form factor with high efficiency

Excellent cooling and noise control

Easy remote management via CIMC

Full support for Intel 10GbE NICs (X520, X710, XL710)

📦 Package Includes:

Cisco UCS C220 M4 SFF Rack Server

Power cables & rail kit (if applicable)

Optional pre-installation of MikroTik RouterOS / CHR

30-day hardware testing warranty (from Arnav Infosystem)

⚙️ Optional Customization (Contact for Quote):

Upgrade CPU, RAM, or SSD storage

Add Intel 10GbE / 40GbE adapters

Install RouterOS / CHR or virtualization platform

Add dual-boot configuration (Linux + RouterOS)
